AIKON Media & Technology 2012

dns studios acoustic design aikon 03

 View of AIKON Studio A, a movie mixing stage completely designed and planned by Digital Natural Sound | Photos © 2012 Luigi Caputo

AIKON Media & Technology 2012

In 2012 we completed working on the new AIKON Media & Technology studios, a full service postproduction facility located in Grödig (near Salzburg, AT). The studio complex includes:

  • Studio A, a state-of-the-art surround movie mixing stage (7.1)
  • Studio B, a smaller cutting/mixing room (5.1)
  • a common machine room
  • a sound-lock that connects all rooms

Among the technical specifications:

  • 84 dB RW insulation between Studio A and Studio B
  • 89 dB RW insulation between the studio rooms and outside
  • 7.1 surround active monitoring system based on Neumann O 410 (L-C-R), KH 870 (subs) and KH 120 A (surround arrays)
  • flat frequency response (within +/- 2 dB) across the complete frequency range (post EQ) up to 110 dB SPL
  • flat RT 60 reverberation time (about 250 ms) across the frequency range
  • AVID D-Command Console installed in a Argosy Mirage desk furniture
  • AVID ProTools HD3, PT9 & PT10 Workstations

Digital Natural Sound took care of the complete acoustic planning and room design, as well as supervising the ongoing construction. The services included: initial sketches, detailed CAD plans, 3D visualization, materialization and lighting; design of custom acoustic elements (reflectors, absorbers, diffusors); consulting for the HVAC, electrical and lighting systems; choice of acoustic doors, window systems and acoustic materials; planning and installation of the 7.1 Neumann surround speaker system; accurate audio measurements of the room acoustic performance and speaker DSP optimization.

The final acoustic performance is simply astounding, delivering a listening and viewing experience of unique detail and accuracy while working in a relaxed and modern mixing environment.

www.aikon-mt.com

top of page

Aikon Studios Gallery

Click on the images below to start the slide show, then use the <- arrows -> on your keyboard to navigate.



Aikon MT 2012 | Completed Studios & Final Technical Specs

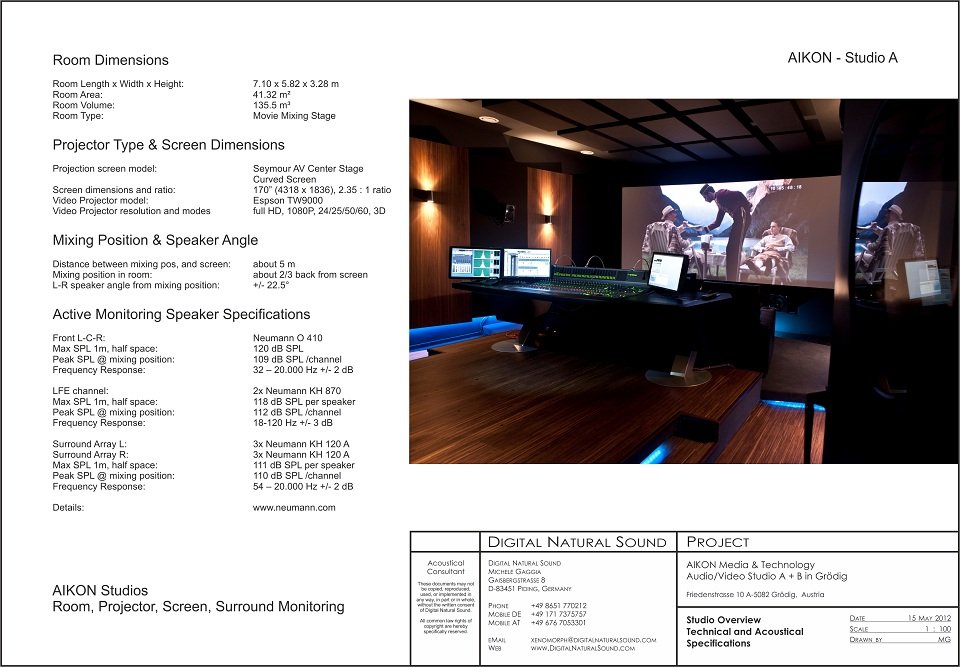

Views of the completed AIKON studios and the final technical specifications | Photos © 2012 Luigi Caputo | © 2011-2012 Michele Gaggia



Aikon MT 2012 | 3D CAD Views

3D CAD visualizations of AIKON Studio A and Studio B, aerial studio facility view | © 2011-2012 Michele Gaggia
